A drop-in coaxial upgrade with the flexibility to fit nearly any vehicles doors for a vast improvement over factory sound.

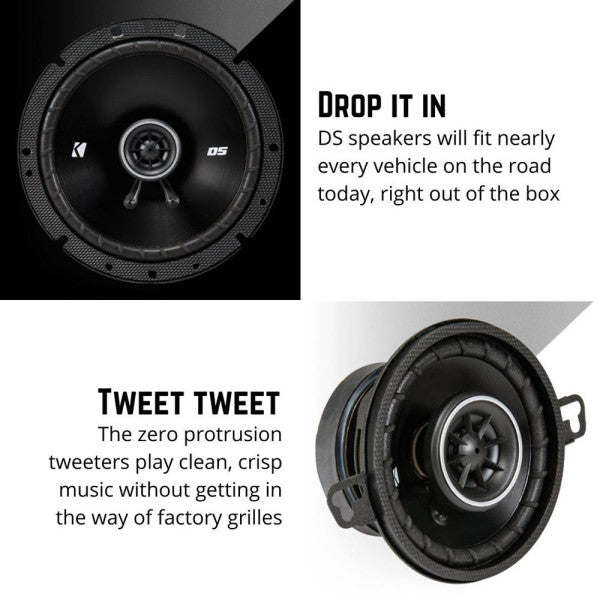

The DS 3-1/2-Inch Coaxial Speakers are an excellent factory upgrade. Using zero protrusion PEI tweeters ensures you get every bit of clarity you need, without interfering with factory grilles. A stamped steel framework supports a ribbed, UV-treated foam surround and rigid polypropylene cone with EVC (Extended Voice Coil) technology, for the best sonic quality.

These DS speakers work best with 20 watts of recommended power.

Recommended Amplifiers
Source Unit
KA43DXA1252
KA43CXA3004
(Some amplifiers may require bridging in order to provide the recommended power)

Speaker Design - 2-Way
Woofer - 3 1/2" (89 mm)
Tweeter - 1/2" (13 mm)
Rated Impedance - 4 Ohm
Peak Power - 80 W
RMS Power - 20 W
Sensitivity - 88 dB 1W, 1m
Frequency Response - 80-20k Hz
Mounting Hole Diameter - 3" (78 mm)
Top Mount Depth - 1/4" (6 mm)

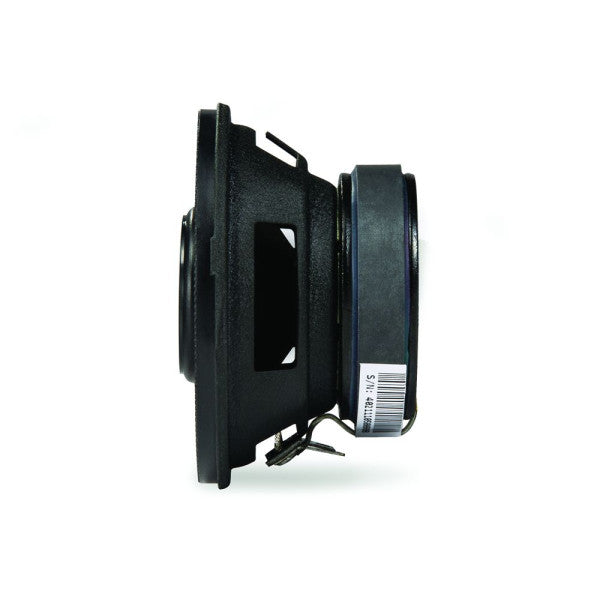

Bottom Mount Depth - 1 11/16" (42 mm)
Tweeter Protrusion - 1/8" (3 mm)
Grilles - Not Included
Tweeter Magnet Material - Neodymium
Tweeter Dome Material - PEI (Polyether Imide)
Tweeter Design - Balanced Dome
Woofer Cone Material - Polypropylene
Woofer Surround Material - Polyester Foam

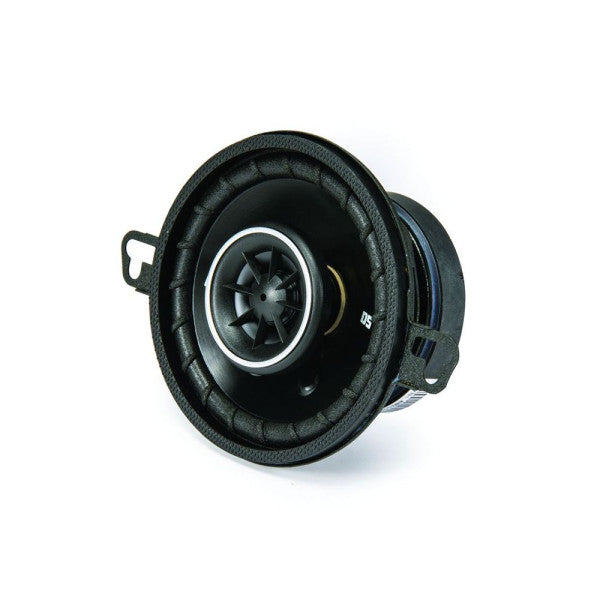

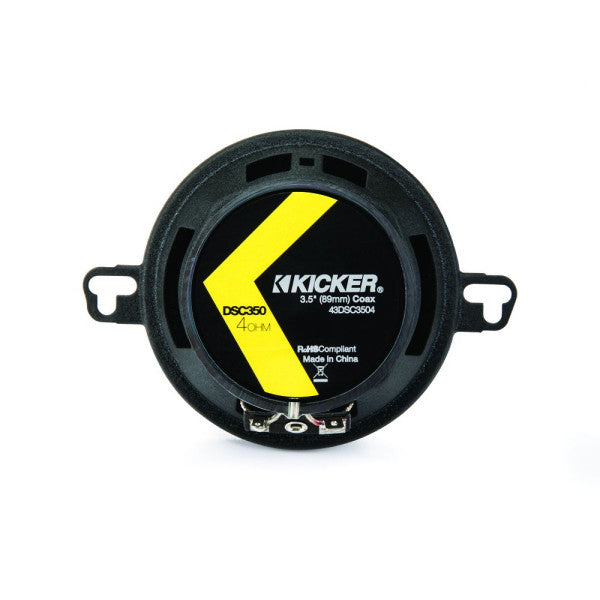

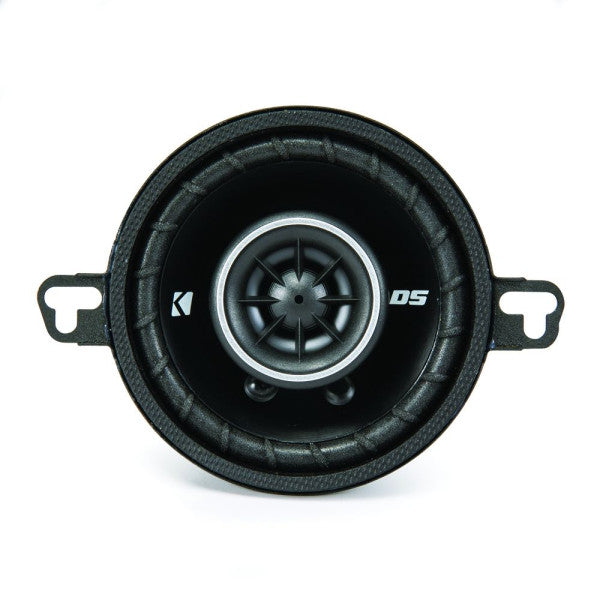

DS 3.5" (89 mm) Coaxial Speaker System
