Featuring an extremely efficient, horn-loaded aluminum diaphragm, the ST1TW 1" Tweeter offers outstanding output and sonic clarity. This single-unit, PA (Pro Audio)-style tweeter is designed to meet the demands of competition-level SPL systems. Its voice is precisely tuned to provide clear vocals that seamlessly blend with high-output bass. With options for front or rear mounting and a range of trim bezel options, the ST1TW Tweeter ensures versatile installation possibilities.

ST-Series street/PA (Pro Audio)-style bullet tweeter.

Extremely efficient, horn-loaded aluminum diaphragm for extreme output
Single-unit, PA (Pro Audio)-style tweeter perfect for competition-level SPL systems
Voiced for clear vocals to match with high-output bass
Includes front or rear mount options, in addition to trim bezel options
Spring-loaded terminals accept 16 AWG wire
In-line 6dB crossover
Field-replaceable voice-coil assembly available (ST3RK/ST4RK)

Specification:

Single Tweeter: 1" (25mm)
Dome Material: Aluminum
Design: Bullet
Impedance: 4 Ohms
Recommended Amp Power: 15-50 watts RMS
Peak Power Handling: 100 watts
Frequency Response: 3.5kHz-20kHz
Sensitivity: 106 dB
In-Line Crossover: 6dB, high-pass
Mounting Depth: 1-3/16" (30mm)
Mounting Diameter: 2-5/16" (58mm
Thread Length: 1-1/16" (27mm)
Thread Diameter: 1-11/16" (43mm)

In the box, you will find:

1 - Tweeter
1 - Round Mounting Flange
1 - Backing Nut
1 - Square Mounting Flange
4 - Mounting Screws
1 - Capacitor
1 - Resistor

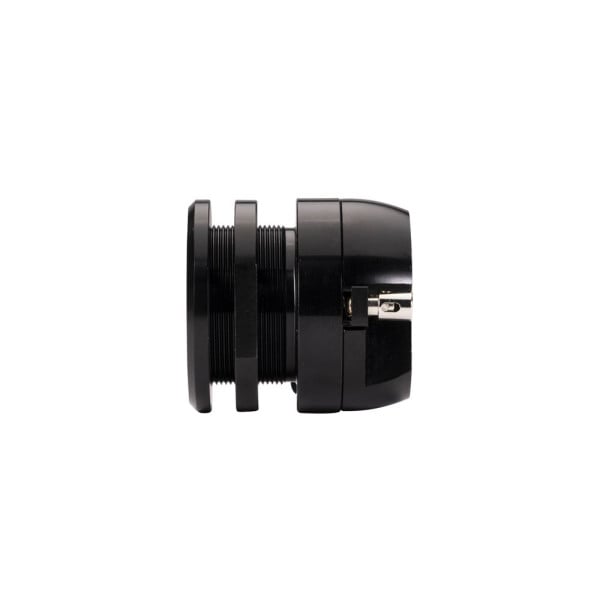

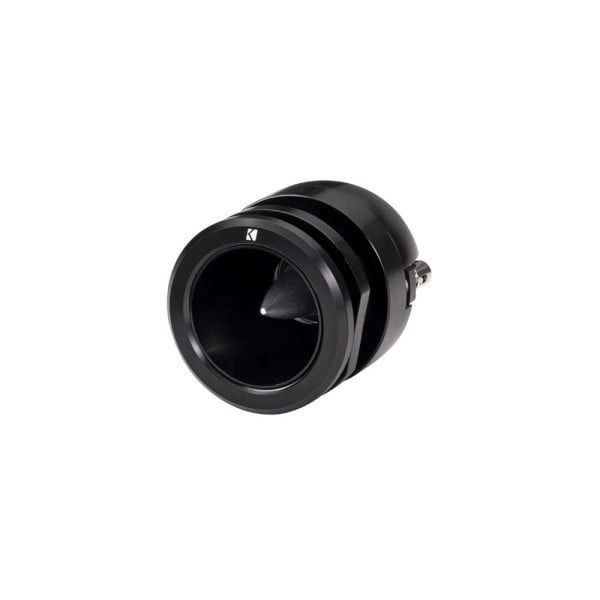

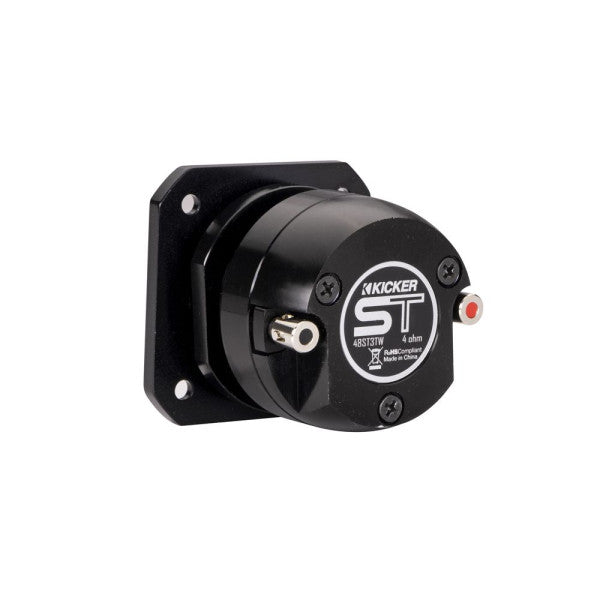

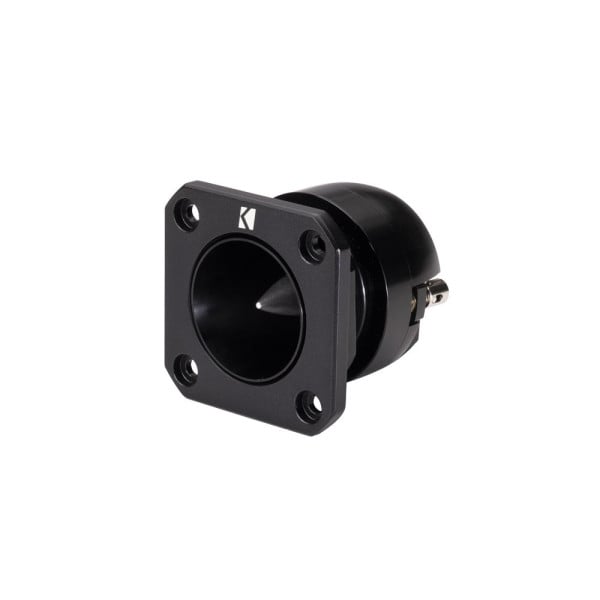

ST 1" (25 mm) Bullet Tweeter 4 Ohm - Single
